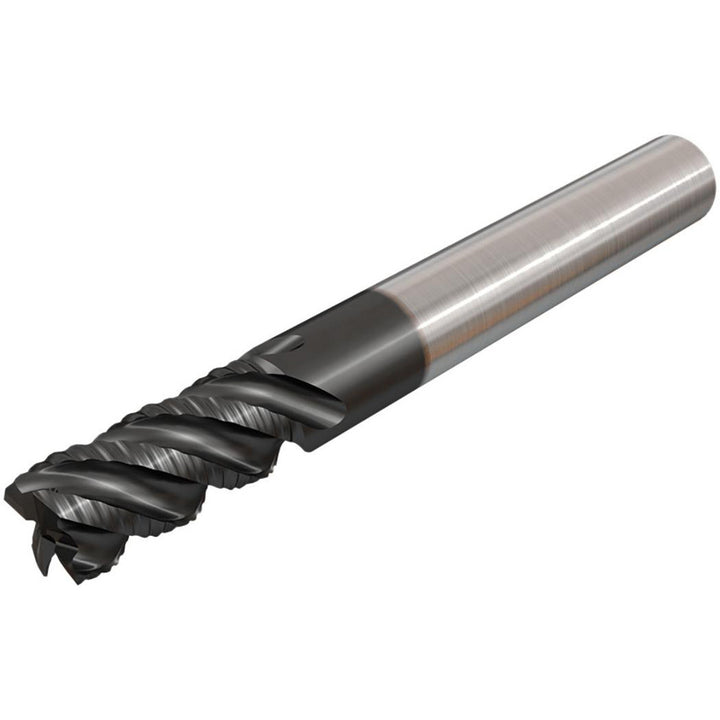

0.2500" 4-Flute Solid Carbide Roughing End Mill, TiAlN - Iscar 5621691

Iscar

0.2500" 4-Flute Solid Carbide Roughing End Mill, TiAlN - Iscar 5621691

MFR# 5621691Series Solid Mill

$80.97List $101.90 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5621691 is a 0.2500 4-flute Solid Carbide (Submicron) roughing end mill with a TiAlN finish for longer tool life. Series Solid Mill.

Specifications

CentercuttingNo
Chamfer angle45
Chamfer width0.0100
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleHigh
Length of cut0.5000
Material gradeSubmicron
Maximum helix angle45
Mill diameter0.2500
Mill diameter frac in1/4
Number of flutes4
PitchCoarse
Reach length (mm)55.00
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Supermill1/4" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251183 $47.18 Seco1/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03083868 $65.39 SGS1/4" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 31244 $27.30 Supermill1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Supermill 5253694 $31.77
