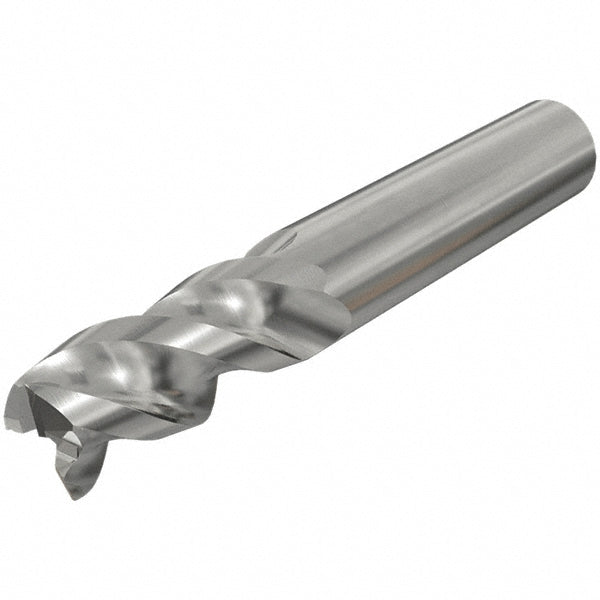

0.1575" 3-Flute Solid Carbide Square End Mill - Iscar 5621803

Iscar

0.1575" 3-Flute Solid Carbide Square End Mill - Iscar 5621803

MFR# 5621803

$47.87List $61.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide

Description

The Iscar 5621803 is a 0.1575 3-flute Solid Carbide (Fine Grain) square end mill. Suited for non-ferrous metal. 0.4724 length of cut.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeFine Grain
Mill diameter0.1575
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes3
Overall length (mm)57.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)6.00
Shank diameter tolerance0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
