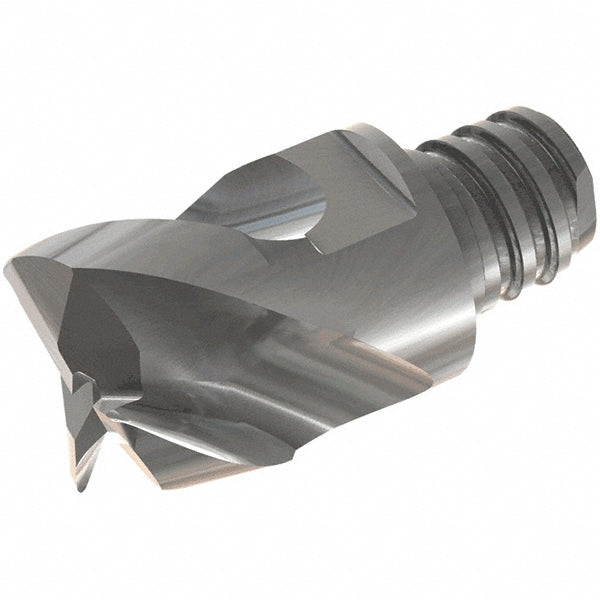

Carbide Insert, Grade IC08 - Iscar 5621949

Iscar

Carbide Insert, Grade IC08 - Iscar 5621949

MFR# 5621949Series MM EA

$62.15List $79.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC08

Description

The Iscar 5621949 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.0394
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder in0.5118
Functional length0.5122
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size100B07R1.0
Lead angle90
Length of cut0.2758in
Manufacturers catalog number5621949
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.2758
Milling tip full descriptionMM EA100B07R1.0-2T06
Milling tip styleMM EA
Milling tip typeSlotting Drill
Number of flutes2
Overall length0.5122in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
