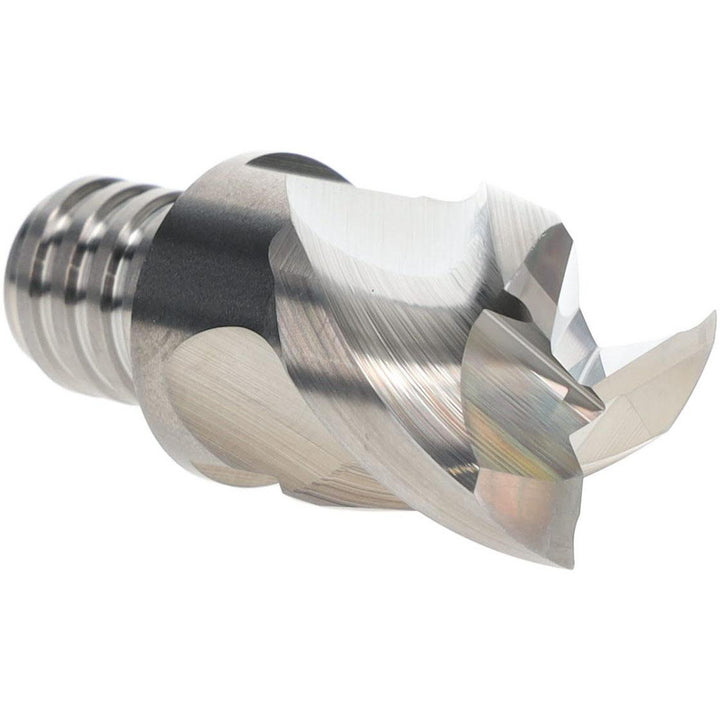

Carbide Insert, Grade IC08 - Iscar 5622019

Iscar

Carbide Insert, Grade IC08 - Iscar 5622019

MFR# 5622019Series MM EA

$151.01List $193.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC08

Description

The Iscar 5622019 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.0080
Cutting width0.7500in
Extension from holder in1.0040
Functional length1.0040
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.750B50R008
Lead angle90
Length of cut in1/2in
Manufacturers catalog number5622019
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.5
Milling tip full descriptionMM EA.750B50R008-3T12
Milling tip styleMM EA
Milling tip typeSlotting Drill
Number of flutes3
Overall length1.0040in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
