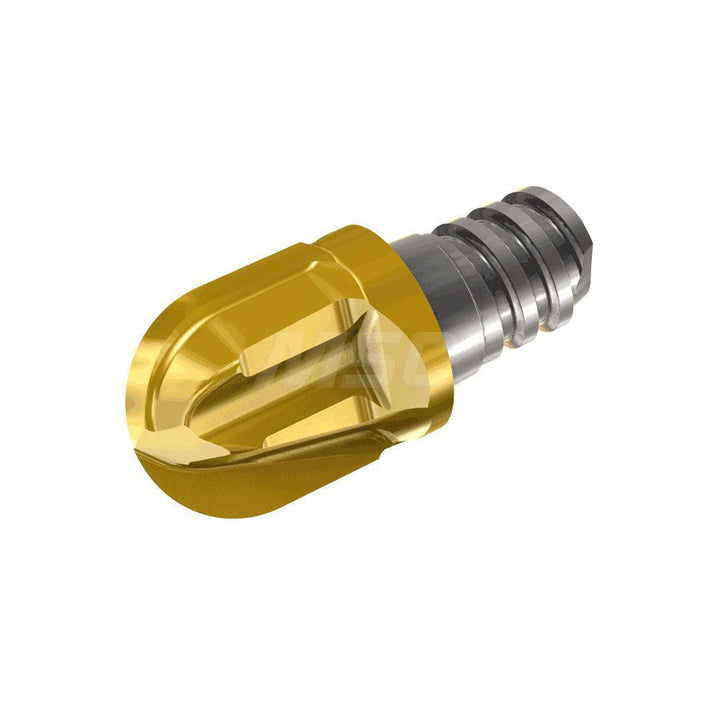

Carbide Insert, Grade IC908, TiAlN - Iscar 5622034

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622034

MFR# 5622034Series MM EB

$209.26List $268.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622034 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3925
Cutting diameter0.7880
Cutting width0.788
Extension from holder in1.0039
Functional length1.0040
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size200A15
Lead angle90
Length of cut0.5910
Manufacturers catalog number5622034
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.5910
Milling tip full descriptionMM EB200A15-4T12
Milling tip styleMM EB
Milling tip typeBall Nose
Number of flutes4
Overall length1.004
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
