Iscar

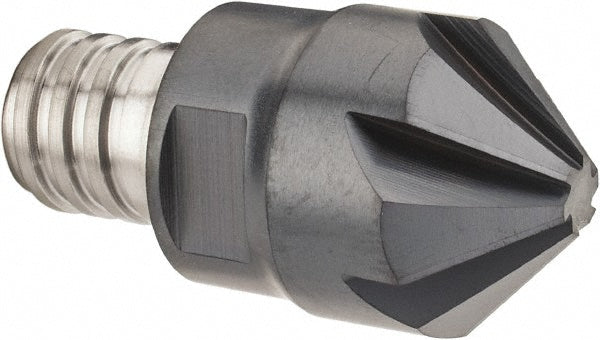

Carbide Insert, Grade IC908, TiAlN - Iscar 5622037
MFR# 5622037Series MM ECF
$204.20List $261.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN
Description
The Iscar 5622037 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.1970
Cutting width0.1970in
Extension from holder in1.0039
Functional length1.0040
Included angle degree60
Insert handRight Hand
Insert size45-200
Lead angle90
Length of cut0.2950in
Manufacturers catalog number5622037
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2950
Milling tip full descriptionMM ECF45-200-6T12
Milling tip styleMM ECF
Milling tip typeChamfer
Number of flutes6
Overall length1.0040in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
