Iscar

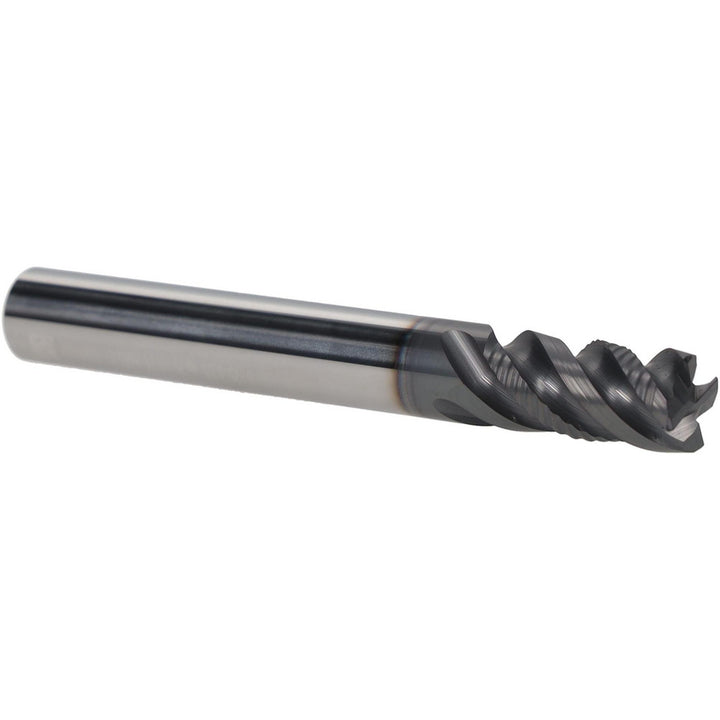

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622109
MFR# 5622109Cat# EFSI-B44 375-750C375Series EFSI-B44
$139.85List $179.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5622109 is a 3/8 4-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 3/4 length of cut, 3 overall length. Series EFSI-B44.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0120
Chamfer width0.0120
ChipbreakerYes
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in3/4
Length typeMedium
Manufacturers catalog numberEFSI-B44 375-750C375
Material gradeIC900
Material removal typeRoughing & Finishing
Mill diameter in3/8
Number of flutes4
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in3/4
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
