Iscar

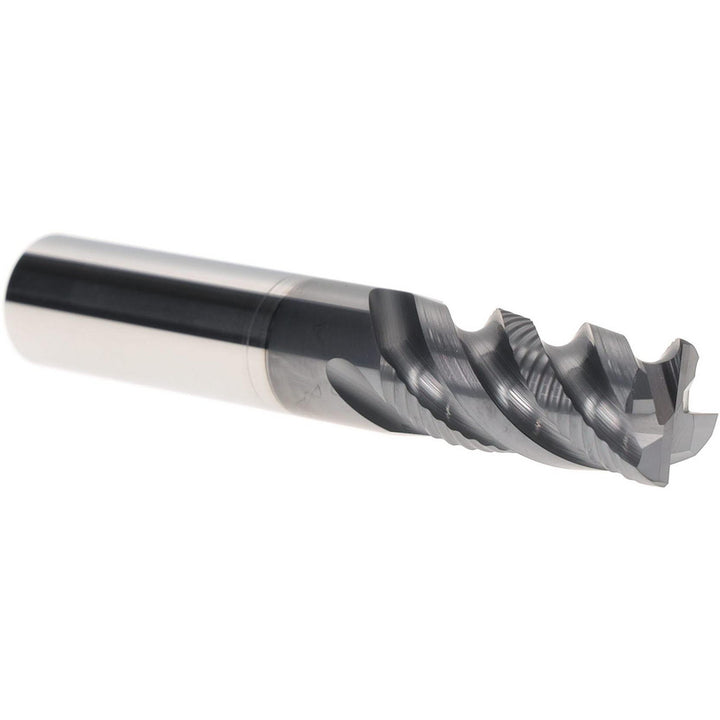

0.5000" 4-Flute Solid Carbide Corner Chamfer End Mill, TiAlN - Iscar 5622110
MFR# 5622110Series Solid Mill
$217.42List $274.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5622110 is a 0.5000 4-flute Solid Carbide (Submicron) corner chamfer end mill with a TiAlN finish for longer tool life. 1 length of cut. Series Solid Mill.
Specifications
CentercuttingYes
Chamfer angle45
Chamfer length0.0160
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Chamfer
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Length of cut in1
Length typeRegular
Material gradeSubmicron
Maximum helix angle45
Mill diameter0.5000
Mill diameter frac in1/2
Neck diameter in0.0160
Number of flutes4
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
