Iscar

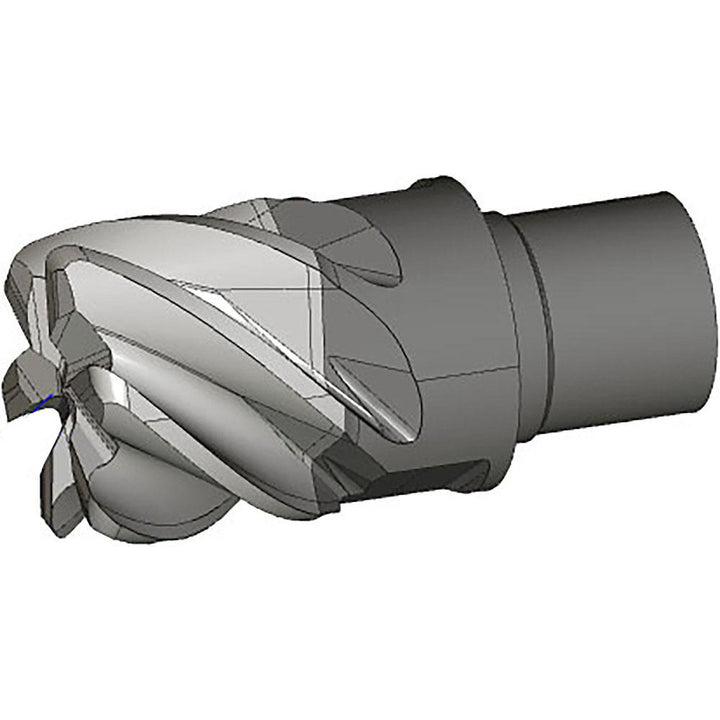

Carbide Insert, Grade IC908, TiAlN - Iscar 5622119
MFR# 5622119Cat# MM EC.375B27R031-6T06Series Multimaster
$85.34List $107.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN
Description
The Iscar 5622119 is a carbide indexable insert, grade IC908, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.3100
Extension from holder in0.5120
Helix angle45
Manufacturers catalog numberMM EC.375B27R031-6T06
Manufacturer gradeIC908
Material gradeFine Grain
Milling tip full descriptionCorner Radius End Mill
Milling tip styleMM EC
Milling tip typeEnd
Number of flutes6
Thread sizeT06
Tool materialCarbide
