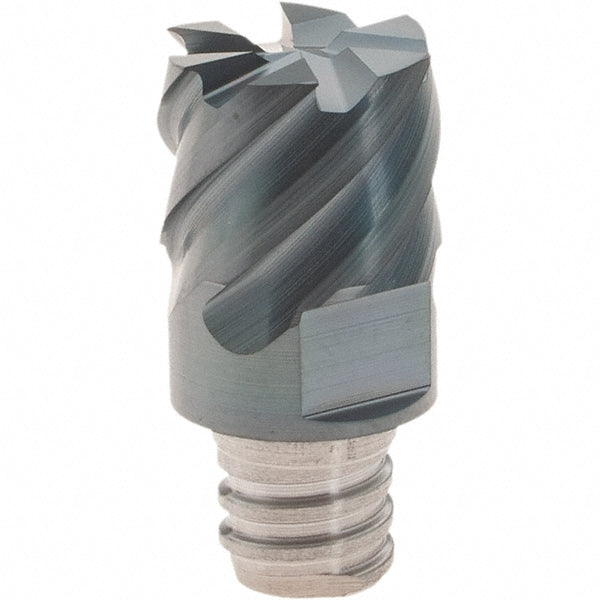

Carbide Insert, Grade IC903, TiAlN - Iscar 5622153

Iscar

Carbide Insert, Grade IC903, TiAlN - Iscar 5622153

MFR# 5622153Series MM EC-D

$93.70List $120.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC903
CoatingTiAlN

Description

The Iscar 5622153 is a carbide indexable insert, grade IC903, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder (mm)13.00
Functional length0.5122
Helix angle50
Included angle degree90
Insert handRight Hand
Insert size100D07C01
Lead angle90
Length of cut0.2758in
Manufacturers catalog number5622153
Manufacturer gradeIC903
Material gradeUltra Fine Grain
Maximum depth of cut0.2758
Milling tip full descriptionMM EC100D07C01-6T06
Milling tip styleMM EC-D
Milling tip typeEnd
Number of flutes6
Overall length0.5122in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
