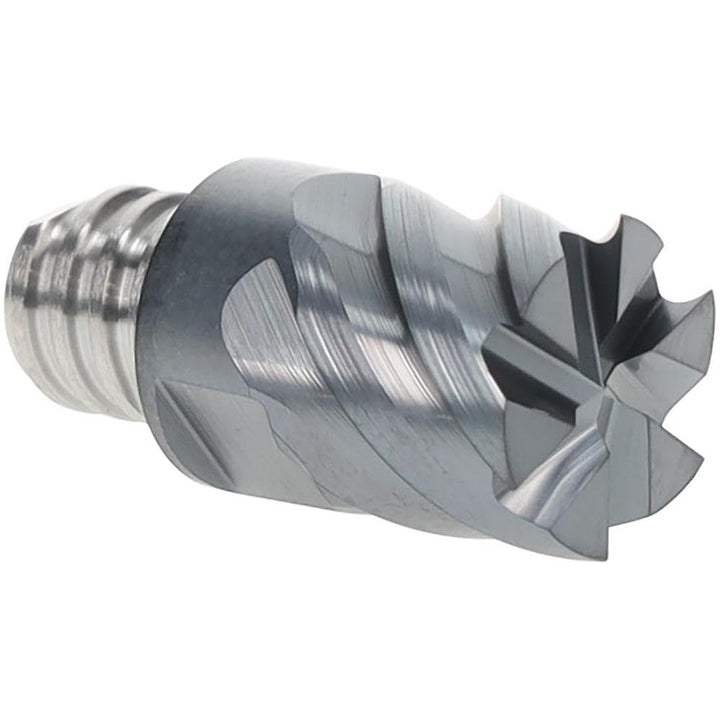

Carbide Insert, Grade IC903, TiAlN - Iscar 5622154

Iscar

Carbide Insert, Grade IC903, TiAlN - Iscar 5622154

MFR# 5622154Series MM EC-D

$117.28List $150.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC903
CoatingTiAlN

Description

The Iscar 5622154 is a carbide indexable insert, grade IC903, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.4728
Cutting width0.4728in
Extension from holder in0.6496
Functional length0.6501
Helix angle50
Included angle degree90
Insert handRight Hand
Insert size120D09C01
Lead angle90
Length of cut0.3546in
Manufacturers catalog number5622154
Manufacturer gradeIC903
Material gradeUltra Fine Grain
Maximum depth of cut0.3546
Milling tip full descriptionMM EC120D09C01-6T08
Milling tip styleMM EC-D
Milling tip typeEnd
Number of flutes6
Overall length0.6501in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
