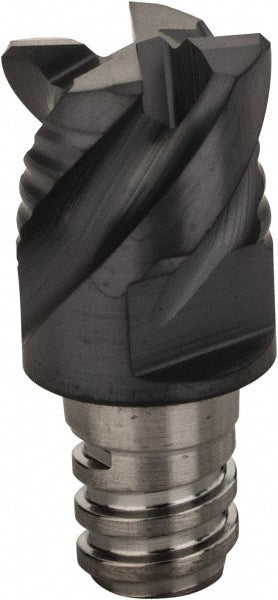

Carbide Insert, Grade IC908, TiAlN - Iscar 5622177

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622177

MFR# 5622177Series MM EFS

$98.54List $126.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622177 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3120
Cutting width0.3120in
Extension from holder in0.3930
Functional length0.3930
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.312B20
Lead angle90
Length of cut0.2000in
Manufacturers catalog number5622177
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2000
Milling tip full descriptionMM EFS.312B20-4T05
Milling tip styleMM EFS
Milling tip typeEnd
Number of flutes4
Overall length0.3930in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
