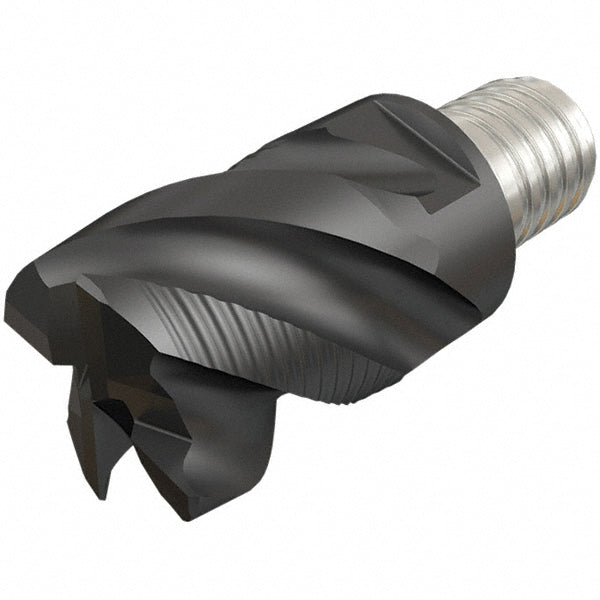

Carbide Insert, Grade IC908, TiAlN - Iscar 5622179

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622179

MFR# 5622179Series MM EFS

$140.71List $180.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622179 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting width0.5000in
Extension from holder in0.6500
Functional length0.6500
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.500B37
Lead angle90
Length of cut0.3700in
Manufacturers catalog number5622179
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3700
Milling tip full descriptionMM EFS.500B37-4T08
Milling tip styleMM EFS
Milling tip typeEnd
Number of flutes4
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
