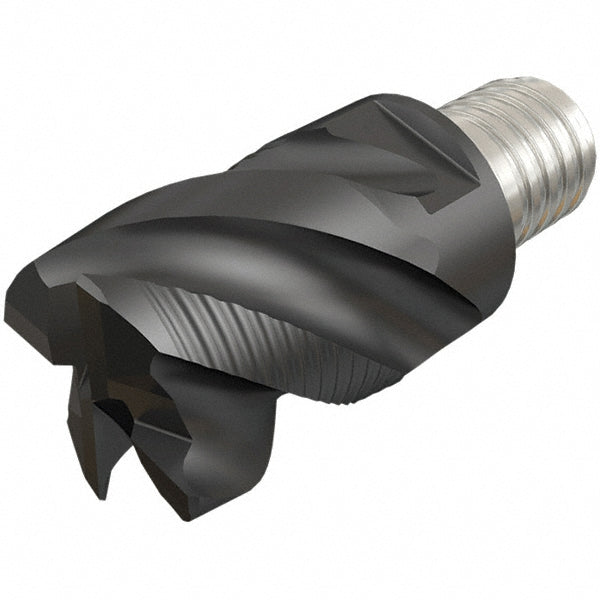

Carbide Insert, Grade IC908, TiAlN - Iscar 5622180

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622180

MFR# 5622180Series MM EFS

$233.15List $298.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622180 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting width0.6250in
Extension from holder in0.8000
Functional length0.8000
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.625B47
Lead angle90
Length of cut0.4700in
Manufacturers catalog number5622180
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4700
Milling tip full descriptionMM EFS.625B47-4T10
Milling tip styleMM EFS
Milling tip typeEnd
Number of flutes4
Overall length0.8000in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
