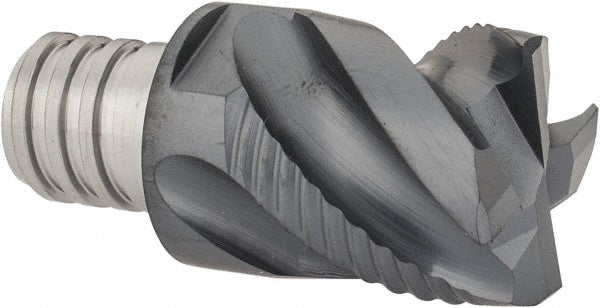

Carbide Insert, Grade IC908, TiAlN - Iscar 5622181

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622181

MFR# 5622181Series MM EFS

$287.17List $368.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622181 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting width0.7500in
Extension from holder in1.0040
Functional length1.0040
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.750B62-4T12
Lead angle90
Length of cut0.6200in
Manufacturers catalog number5622181
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.6200
Milling tip full descriptionMM EFS.750B62-4T12
Milling tip styleMM EFS
Milling tip typeEnd
Number of flutes4
Overall length1.0040in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
