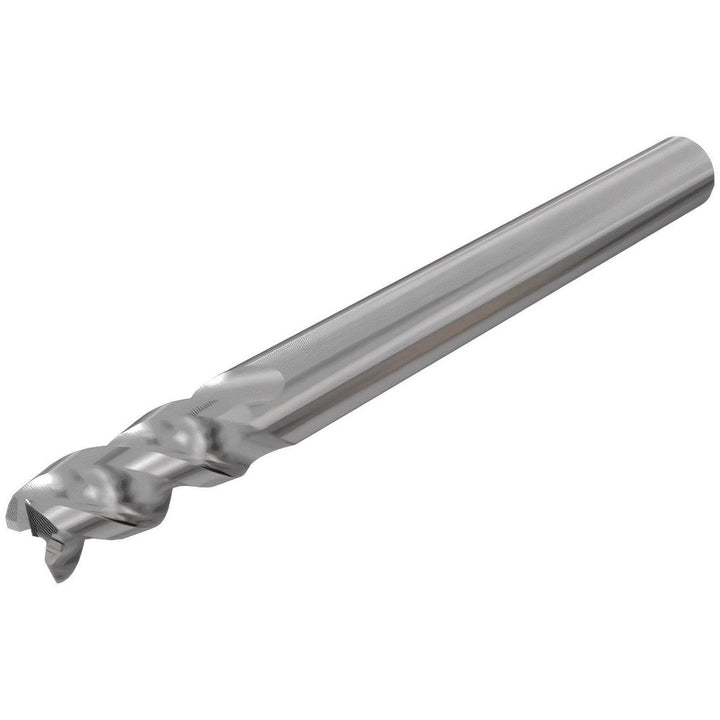

0.3130" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622184

MFR# 5622184Series ECAI-B-3

$56.69List $72.60 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Iscar 5622184 is a 0.3130 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 5/8 length of cut, 2-1/2 overall length. Series ECAI-B-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0080

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in5/8

Length typeStandard

Material applicationNon-Ferrous Metal

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter0.3130

Mill diameter toleranceh6

Number of flutes3

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in5/8

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
