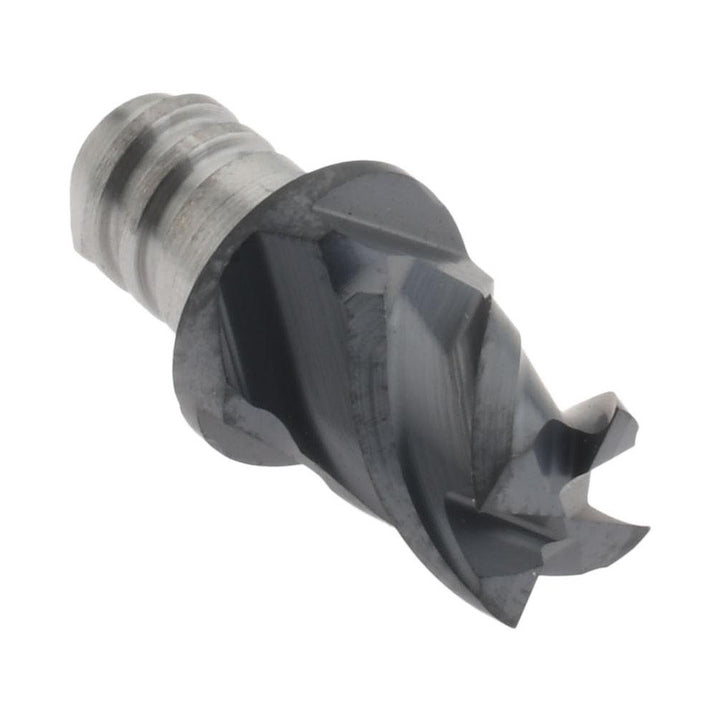

Carbide Insert, Grade IC908, TiAlN - Iscar 5622235

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622235

MFR# 5622235Series MM EC-4

$62.70List $80.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622235 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.2364
Cutting width0.2364in
Extension from holder (mm)10.00
Functional length0.3940
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size060B05R000
Lead angle90
Length of cut0.1970in
Manufacturers catalog number5622235
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1970
Milling tip full descriptionMM EC060B05R000-4T05
Milling tip styleMM EC-4
Milling tip typeEnd
Number of flutes4
Overall length0.3940in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
