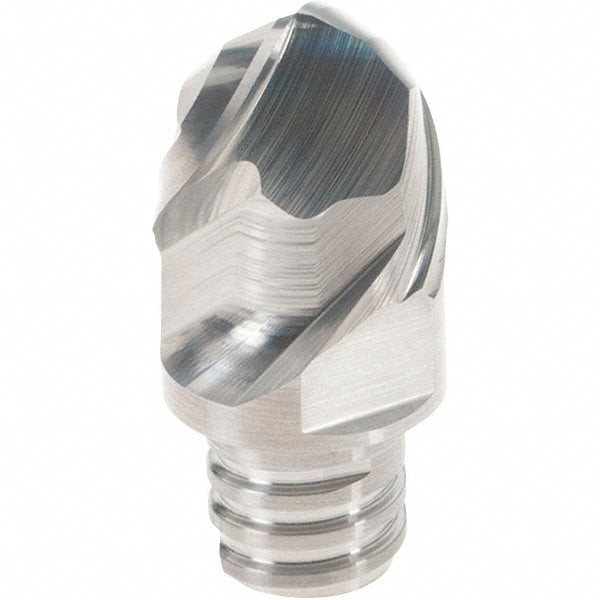

Carbide Insert, Grade IC08 - Iscar 5622240

Iscar

Carbide Insert, Grade IC08 - Iscar 5622240

MFR# 5622240Series MM EBA

$87.77List $112.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC08

Description

The Iscar 5622240 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.2356
Cutting diameter0.4728
Cutting width0.4728in
Extension from holder (mm)16.50
Functional length0.6501
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size120B09
Lead angle90
Length of cut0.3546in
Manufacturers catalog number5622240
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.3546
Milling tip full descriptionMM EBA120B09-2T08
Milling tip styleMM EBA
Milling tip typeBall Nose
Number of flutes2
Overall length0.6501in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
