Carbide Insert, Grade IC08 - Iscar 5622244

Iscar

Carbide Insert, Grade IC08 - Iscar 5622244

MFR# 5622244Series MM EBA

$70.51List $90.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC08

Description

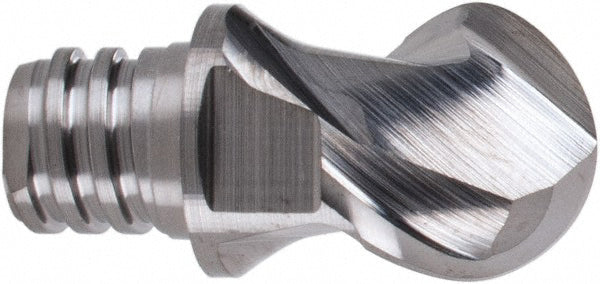

The Iscar 5622244 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.1870
Cutting width0.3750in
Extension from holder in0.5100
Functional length0.5100
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.375B27
Lead angle90
Length of cut0.2700in
Manufacturers catalog number5622244
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.2700
Milling tip full descriptionMM EBA.375B27-2T06
Milling tip styleMM EBA
Milling tip typeBall Nose
Number of flutes2
Overall length0.5100in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
