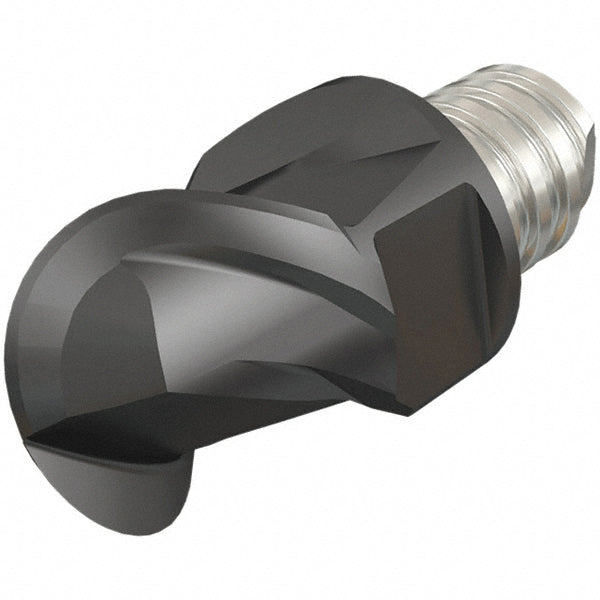

Carbide Insert, Grade IC08 - Iscar 5622246

Iscar

Carbide Insert, Grade IC08 - Iscar 5622246

MFR# 5622246Series MM EBA

$139.53List $178.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC08

Description

The Iscar 5622246 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.3120
Cutting width0.6250in
Extension from holder in0.8000
Functional length0.8000
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.625B47
Lead angle90
Length of cut0.4700in
Manufacturers catalog number5622246
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.4700
Milling tip full descriptionMM EBA.625B47-2T10
Milling tip styleMM EBA
Milling tip typeBall Nose
Number of flutes2
Overall length0.8000in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
