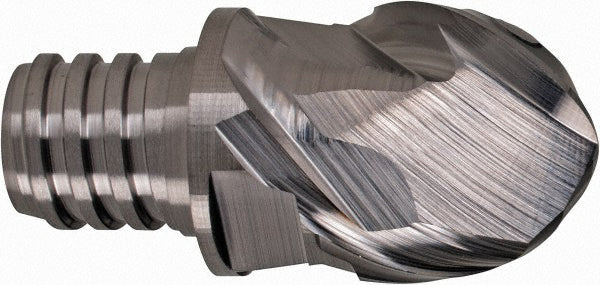

Carbide Insert, Grade IC08 - Iscar 5622247

Iscar

Carbide Insert, Grade IC08 - Iscar 5622247

MFR# 5622247Series MM EBA

$159.52List $204.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC08

Description

The Iscar 5622247 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.3740
Cutting width0.7500in
Extension from holder in1.0000
Functional length1.0000
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.750B50
Lead angle90
Length of cut in1/2in
Manufacturers catalog number5622247
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.5
Milling tip full descriptionMM EBA.750B50-2T12
Milling tip styleMM EBA
Milling tip typeBall Nose
Number of flutes2
Overall length in1in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
