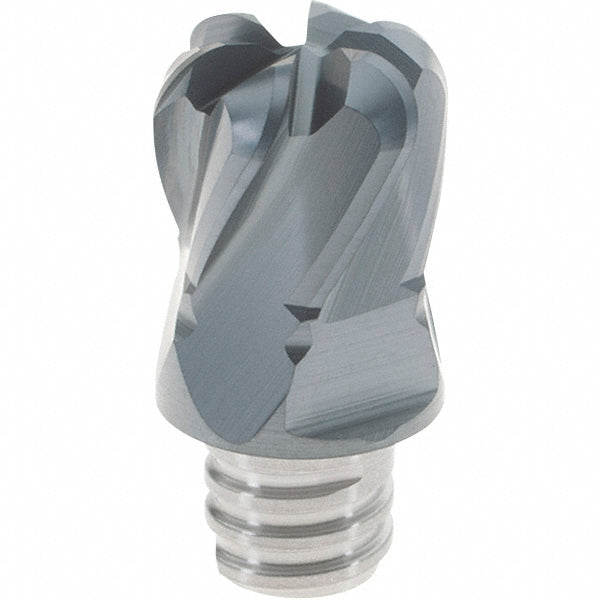

Carbide Insert, Grade IC908, TiAlN - Iscar 5622266

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622266

MFR# 5622266Series MM ETR

$128.53List $164.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

The Iscar 5622266 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1250
Cutting width0.5000in
Extension from holder in0.6500
Functional length0.6500
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.500A27R125
Lead angle90
Length of cut0.2700in
Manufacturers catalog number5622266
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2700
Milling tip full descriptionMM ETR.500A27R125-6T08 90
Milling tip styleMM ETR
Milling tip typeToroidal
Number of flutes6
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
