Iscar

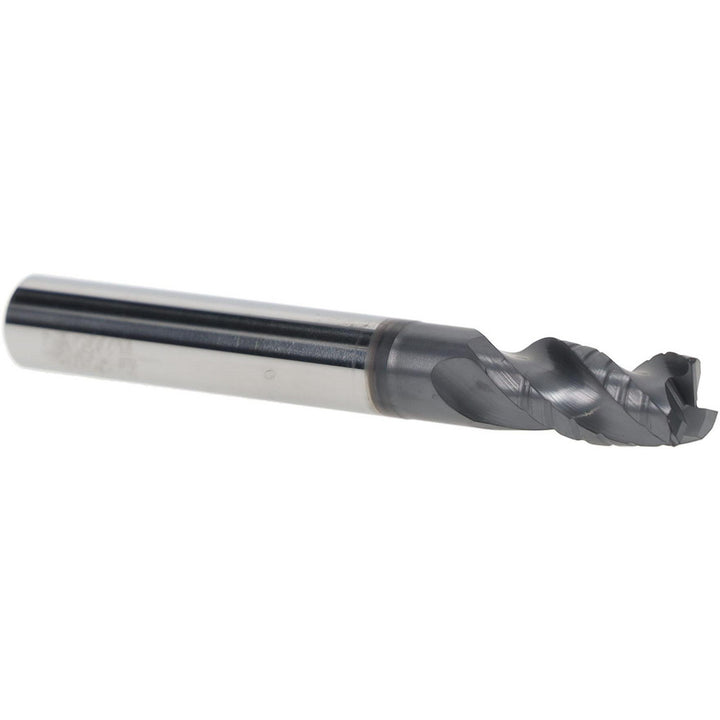

0.3120in" 3-Flute Solid Carbide Roughing End Mill, TiAlN - Iscar 5622301
MFR# 5622301Series Solid Mill
$73.39List $94.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5622301 is a 0.3120in 3-flute Solid Carbide (Submicron) roughing end mill with a TiAlN finish for longer tool life. Series Solid Mill.
Specifications
CentercuttingNo
Chamfer angle45degree
Chamfer width0.0150
ChipbreakerYes
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleHigh
Length of cut0.6250in
Material gradeSubmicron
Maximum helix angle38
Mill diameter0.3120in
Mill diameter frac in5/16in
Number of flutes3
Reach length (mm)25.00
Shank diameter in5/16in
Shank typeStraight-Cylindrical
Single or double endSingle
