Carbide Insert, Grade IC908, TiAlN - Iscar 5622351

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622351

MFR# 5622351Series MM ECS

$95.73List $122.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

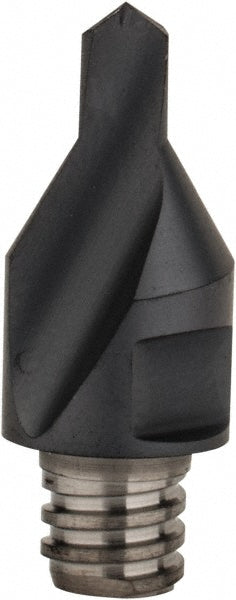

The Iscar 5622351 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.1620
Cutting width0.1620in
Extension from holder in0.7480
Functional length0.7480
Included angle degree120
Insert handRight Hand
Insert sizeA4.00X10
Lead angle90
Manufacturers catalog number5622351
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM ECS-A4.00X10-2T06
Milling tip styleMM ECS
Milling tip typeCenter Drill
Number of flutes2
Overall length0.7480in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
