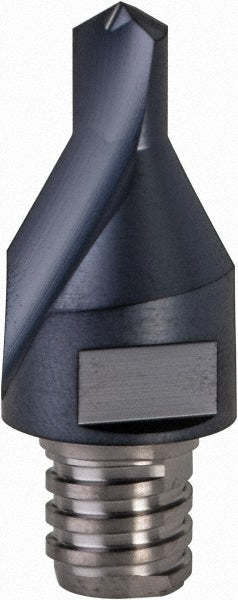

Carbide Insert, Grade IC908, TiAlN - Iscar 5622353

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622353

MFR# 5622353Series MM ECS

$189.20List $242.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5622353 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.2545
Cutting width0.2545in
Functional length1.1032
Included angle degree120
Insert handRight Hand
Insert sizeA6.30X16
Lead angle90
Manufacturers catalog number5622353
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM ECS-A6.30X16-2T10
Milling tip styleMM ECS
Milling tip typeCenter Drill
Number of flutes2
Overall length1.1032in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
