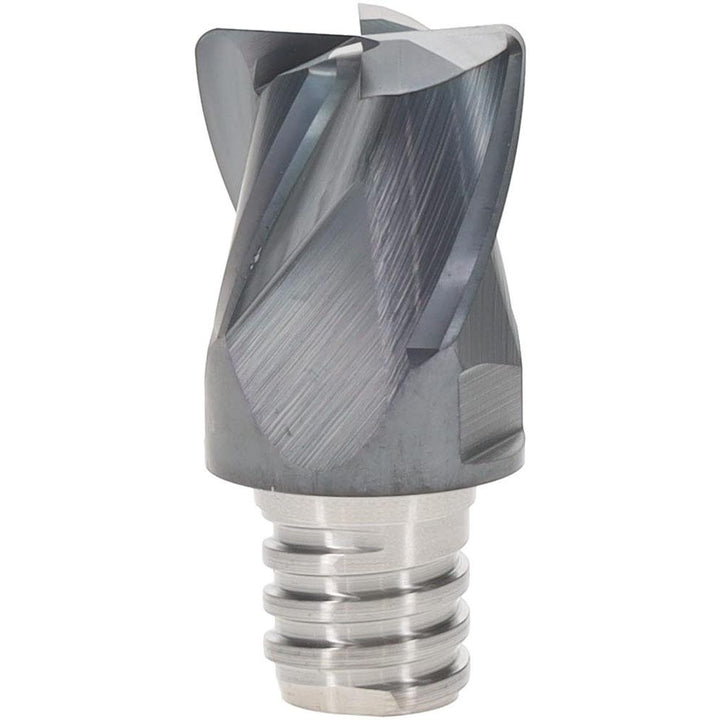

Carbide Insert, Grade IC908, TiAlN - Iscar 5622373

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622373

MFR# 5622373Series MM EC-4

$186.30List $238.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622373 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0600
Cutting width0.7500in
Extension from holder in1.0000
Functional length1.0000
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.750A62R060
Lead angle90
Length of cut0.6200in
Manufacturers catalog number5622373
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.6200
Milling tip full descriptionMM EC.750A62R060-4T12
Milling tip styleMM EC-4
Milling tip typeCorner Radius
Number of flutes4
Overall length in1in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
