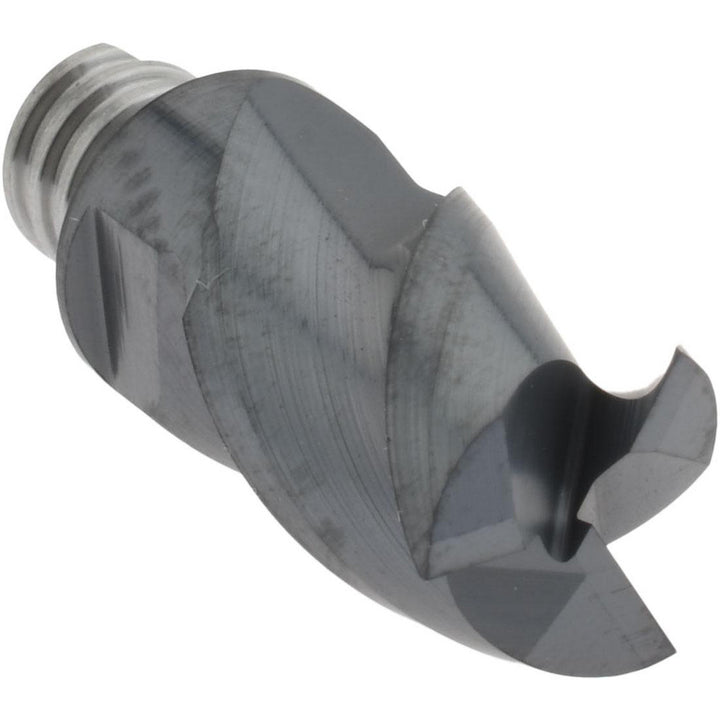

Carbide Insert, Grade IC908, TiAlN - Iscar 5622377

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622377

MFR# 5622377Series MM EC-3

$92.60List $118.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC908
CoatingTiAlN

Description

The Iscar 5622377 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder (mm)19.00
Functional length0.7486
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size100B12R000
Lead angle90
Length of cut0.4728in
Manufacturers catalog number5622377
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4728
Milling tip full descriptionMM EC100B12R000-3T06
Milling tip styleMM EC-3
Milling tip typeEnd
Number of flutes3
Overall length0.7486in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
