Iscar

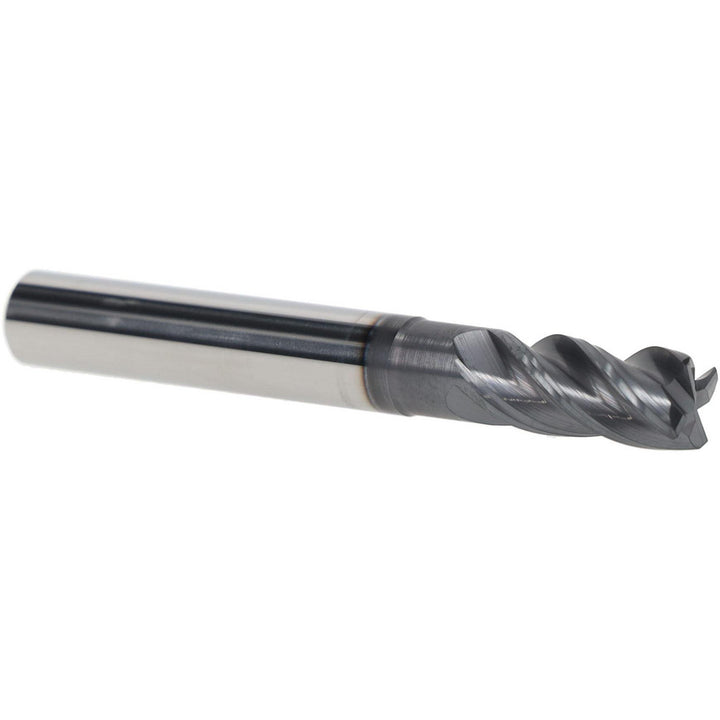

0.3120" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622433

MFR# 5622433Cat# ECI-E4L312-625/1.0C312CFSeries ECI-E4-CF

$66.76List $85.50 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5622433 is a 0.3120 4-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 5/8 length of cut, 2-1/2 overall length. Series ECI-E4-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingNo

Chamfer angle45

Chamfer length0.0120

Chamfer width0.0120

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38

Helix styleMedium

Length of cut in5/8

Length typeExtended

Manufacturers catalog numberECI-E4L312-625/1.0C312CF

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter0.3120

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in1

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in5/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
