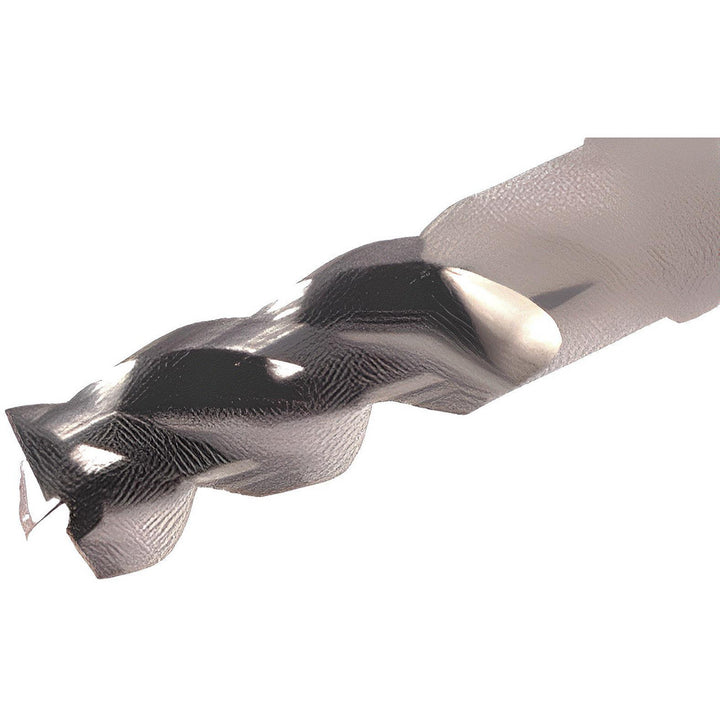

0.3120" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622917

MFR# 5622917Series ECAI-H3-CF

$67.86List $86.90 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The Iscar 5622917 is a 0.3120 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 1/2 length of cut, 2-1/2 overall length. Series ECAI-H3-CF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut in1/2

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter0.3120

Mill diameter toleranceh6

Number of flutes3

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length0.9000

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
