Iscar

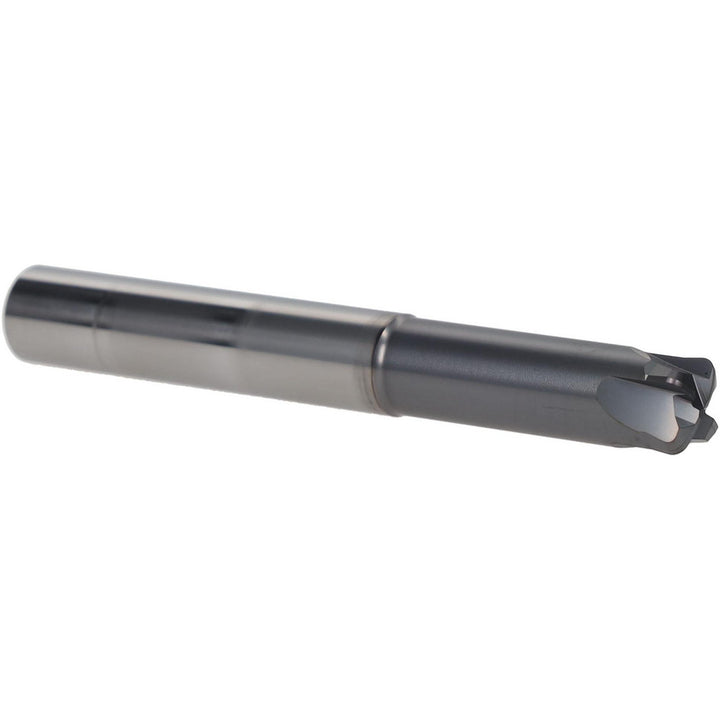

3/8" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Iscar 5622477

MFR# 5622477Series EFFI-S4/S6

$128.76List $164.90 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Iscar 5622477 is a 3/8 4-flute Solid Carbide (Ultra Fine Grain) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/8 length of cut, 3 overall length. Series EFFI-S4/S6.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Corner radius0.0740

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeStraight

For use withToolholder

Length of cut in3/8

Length typeExtra Long

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeUltra Fine Grain

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerancee9

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length1.2000

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
