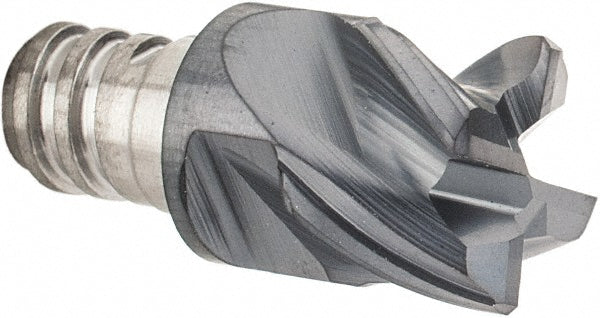

Carbide Insert, Grade IC908, TiAlN - Iscar 5622601

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622601

MFR# 5622601Series MM EC-CF

$91.36List $117.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622601 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3120
Cutting width0.3120in
Extension from holder in0.3930
Functional length0.3930
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size312E20C12
Lead angle45
Length of cut0.2200in
Manufacturers catalog number5622601
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2200
Milling tip full descriptionMM EC312E20C12CF-4T05
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length0.3930in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
