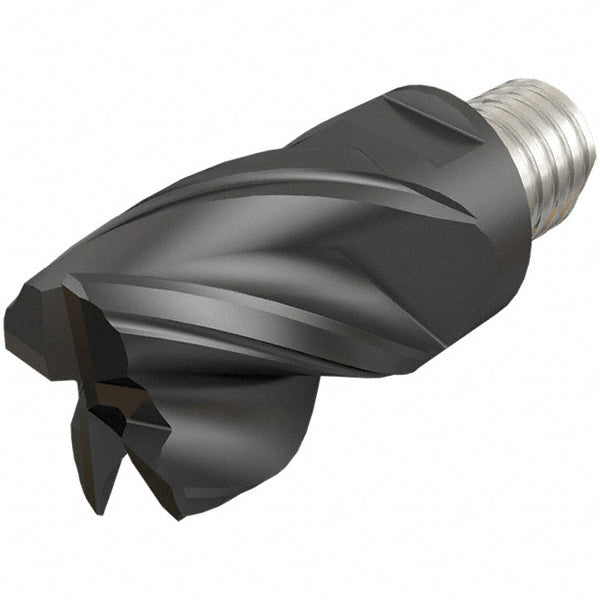

Carbide Insert, Grade IC908, TiAlN - Iscar 5622604

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622604

MFR# 5622604Series MM EC-CF

$183.03List $234.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622604 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting width0.625
Extension from holder in0.8100
Functional length0.8100
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size625E47C24
Lead angle45
Length of cut in1/2
Manufacturers catalog number5622604
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.5
Milling tip full descriptionMM EC625E47C24CF-4T10
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length0.81
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
