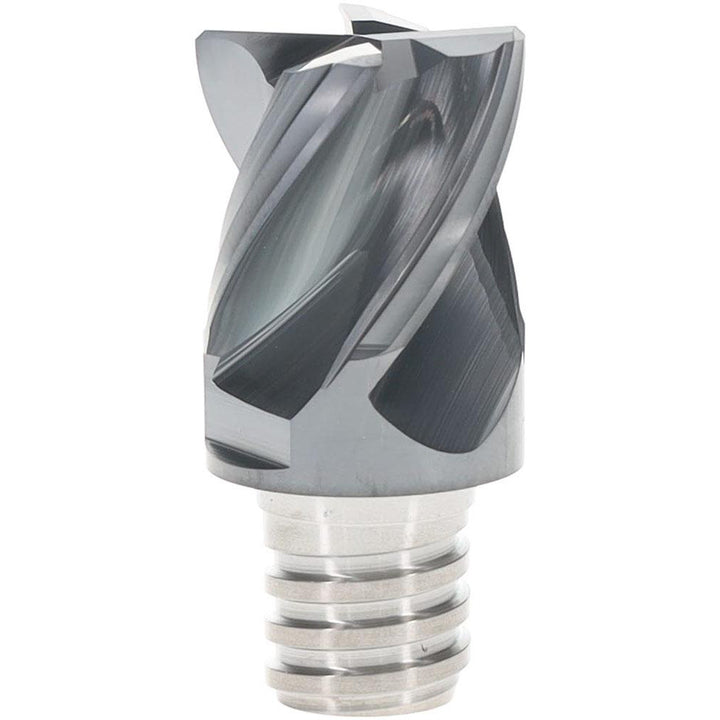

Carbide Insert, Grade IC908, TiAlN - Iscar 5622605

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622605

MFR# 5622605Series MM EC-CF

$234.69List $301.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622605 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting width0.75
Extension from holder in1.0040
Functional length1.0040
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size750E62C24
Lead angle45
Length of cut0.6290
Manufacturers catalog number5622605
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.6290
Milling tip full descriptionMM EC750E62C24CF-4T12
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length1.004
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
