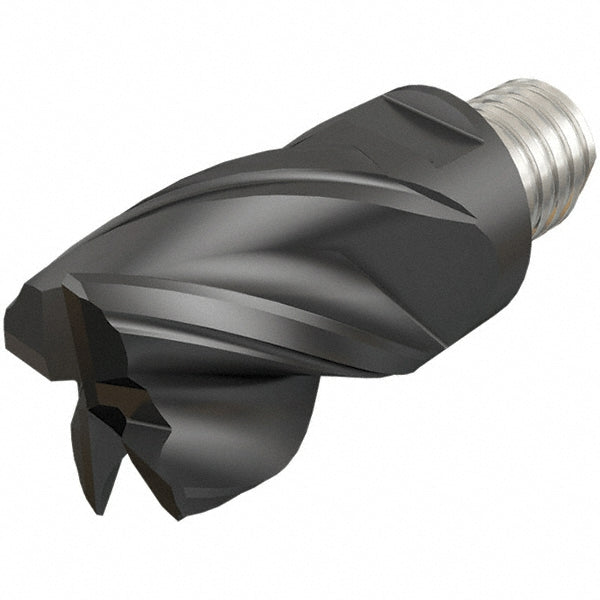

Carbide Insert, Grade IC908, TiAlN - Iscar 5622629

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622629

MFR# 5622629Series MM EC-CF

$286.17List $366.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622629 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.0000
Cutting width1.0000in
Extension from holder in1.4560
Functional length1.4560
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size1.00E86C6
Lead angle45
Length of cut0.8930in
Manufacturers catalog number5622629
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.8930
Milling tip full descriptionMM EC1.00E86C6CF-4T15
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length1.4560in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
