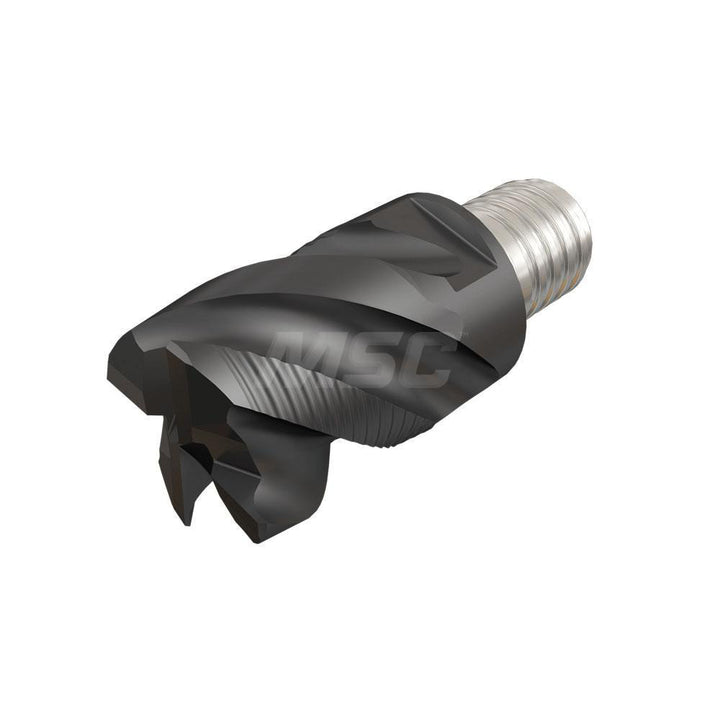

Carbide Insert, Grade IC908, TiAlN - Iscar 5622632

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622632

MFR# 5622632Series MM EFS

$342.94List $439.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622632 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter1.0000
Cutting width1.0000in
Extension from holder in1.4567
Functional length1.4570
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size1.00B86
Lead angle90
Length of cut0.8660in
Manufacturers catalog number5622632
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.8660
Milling tip full descriptionMM EFS1.00B86-4T15
Milling tip styleMM EFS
Milling tip typeEnd
Number of flutes4
Overall length1.4570in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
