Carbide Insert, Grade IC08 - Iscar 5622634

Iscar

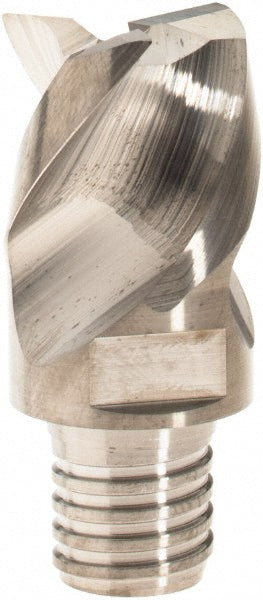

Carbide Insert, Grade IC08 - Iscar 5622634

MFR# 5622634Series MM EA-CF

$193.60List $248.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC08

Description

The Iscar 5622634 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.0200
Cutting diameter1.0000
Cutting width1.0000in
Extension from holder in1.4400
Functional length1.4400
Helix angle40
Included angle degree90
Insert handRight Hand
Insert size1.0H75R02
Lead angle90
Length of cut in3/4in
Manufacturers catalog number5622634
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.75
Milling tip full descriptionMM EA1.0H75R02-3T15
Milling tip styleMM EA-CF
Milling tip typeRoughing
Number of flutes3
Overall length1.4400in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
