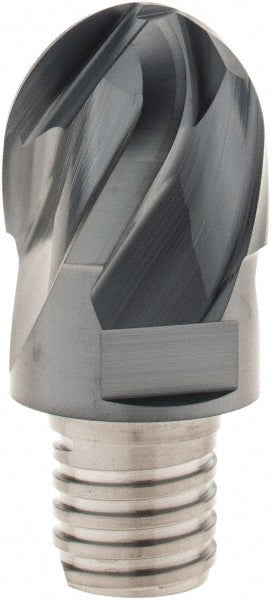

Carbide Insert, Grade IC908, TiAlN - Iscar 5622635

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622635

MFR# 5622635Series MM EB

$258.48List $331.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622635 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.5000
Cutting diameter1.0000
Cutting width1.0000in
Extension from holder in1.4500
Functional length1.4500
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size1.00A86
Lead angle90
Length of cut0.8600in
Manufacturers catalog number5622635
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.8600
Milling tip full descriptionMM EB1.00A86-4T15
Milling tip styleMM EB
Milling tip typeBall Nose
Number of flutes4
Overall length1.4500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
