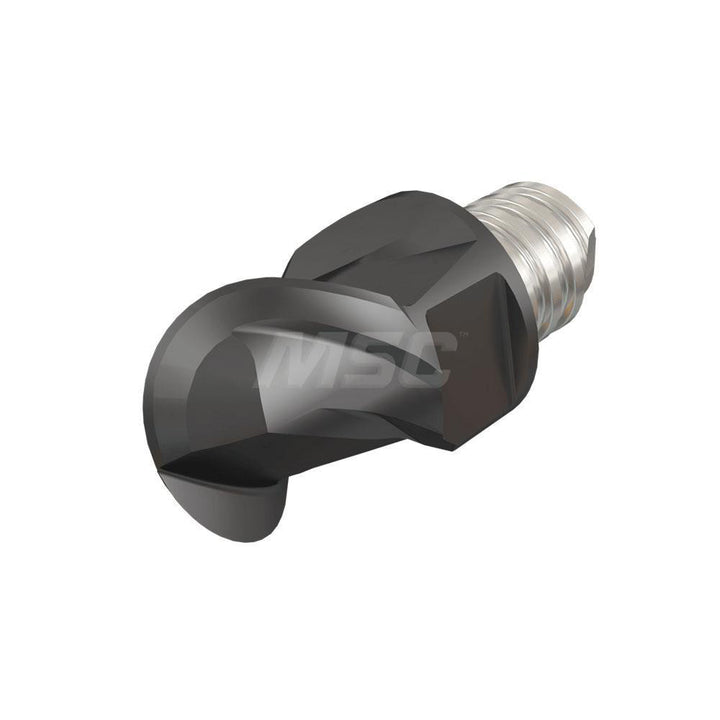

Carbide Insert, Grade IC08 - Iscar 5622636

Iscar

Carbide Insert, Grade IC08 - Iscar 5622636

MFR# 5622636Series MM EBA

$203.56List $260.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC08

Description

The Iscar 5622636 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.4980
Cutting diameter1.0000
Cutting width1.0000in
Extension from holder in1.4500
Functional length1.4500
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size1.00B86
Lead angle90
Length of cut0.8600in
Manufacturers catalog number5622636
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.8600
Milling tip full descriptionMM EBA1.00B86-2T15
Milling tip styleMM EBA
Milling tip typeBall Nose
Number of flutes2
Overall length1.4500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
