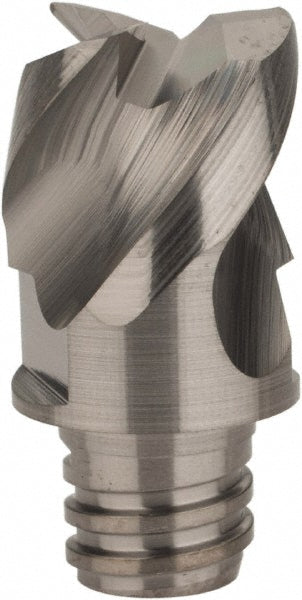

Carbide Insert, Grade IC08 - Iscar 5622733

Iscar

Carbide Insert, Grade IC08 - Iscar 5622733

MFR# 5622733Series MM EA

$80.74List $103.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC08

Description

The Iscar 5622733 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.0310
Cutting diameter (mm)12.70
Cutting width0.5000in
Extension from holder in0.6496
Functional length0.6500
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.500B31R031
Lead angle90
Length of cut0.3150in
Manufacturers catalog number5622733
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.3150
Milling tip full descriptionMM EA.500B31R031-3T08
Milling tip styleMM EA
Milling tip typeSlotting Drill
Number of flutes3
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
