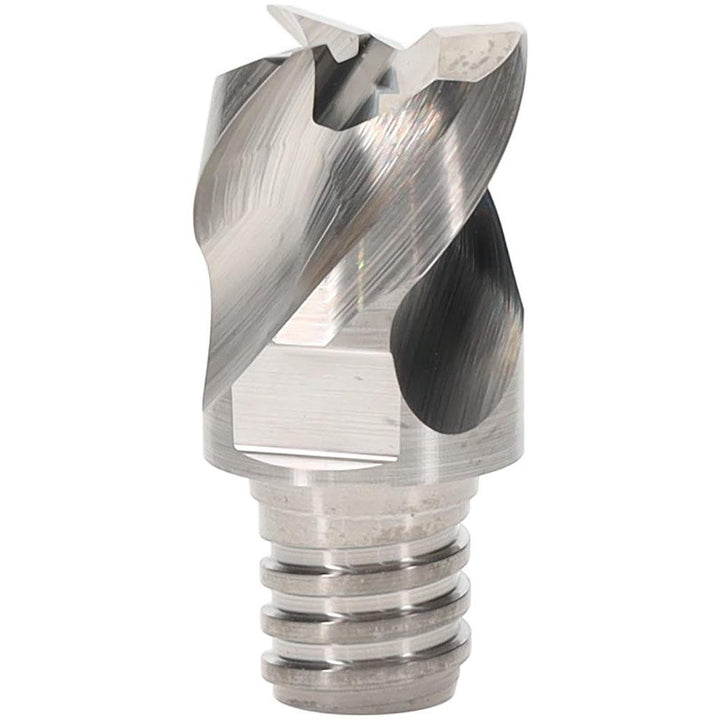

Carbide Insert, Grade IC08 - Iscar 5622737

Iscar

Carbide Insert, Grade IC08 - Iscar 5622737

MFR# 5622737Series MM EA

$131.96List $169.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC08

Description

The Iscar 5622737 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.0310
Cutting width0.6250in
Extension from holder in0.8100
Functional length0.8100
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.625B39R031
Lead angle90
Length of cut0.3900in
Manufacturers catalog number5622737
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.3900
Milling tip full descriptionMM EA.625B39R031-3T10
Milling tip styleMM EA
Milling tip typeSlotting Drill
Number of flutes3
Overall length0.8100in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
