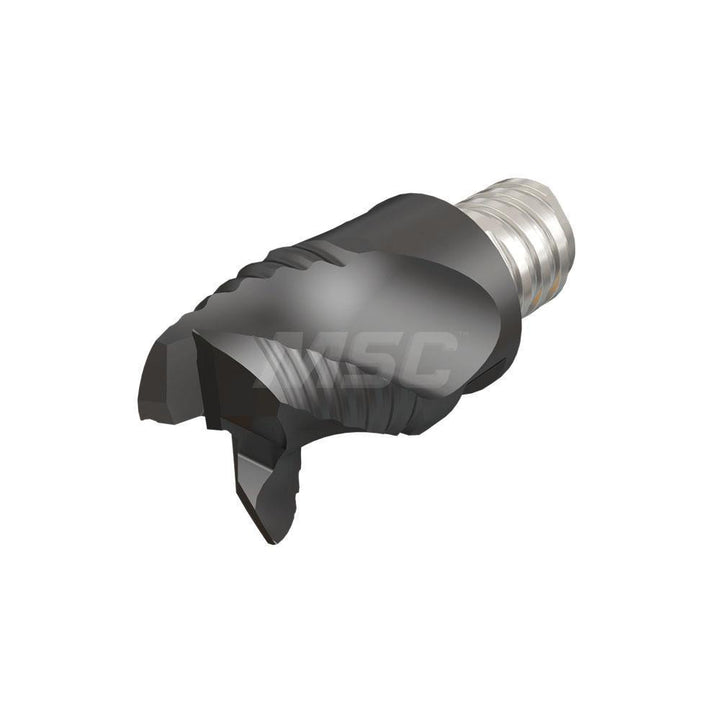

Carbide Insert, Grade IC08 - Iscar 5622745

Iscar

Carbide Insert, Grade IC08 - Iscar 5622745

MFR# 5622745Series MM ERA

$67.29List $86.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC08

Description

The Iscar 5622745 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerCommon
Coolant throughNo
Corner radius0.0080
Cutting diameter0.3120
Cutting width0.312
Extension from holder in0.3900
Functional length0.3900
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.312B20R008
Lead angle90
Length of cut0.2100
Manufacturers catalog number5622745
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.2100
Milling tip full descriptionMM ERA.312B20R008-3T05 08
Milling tip styleMM ERA
Milling tip typeRoughing
Number of flutes3
Overall length0.39
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
