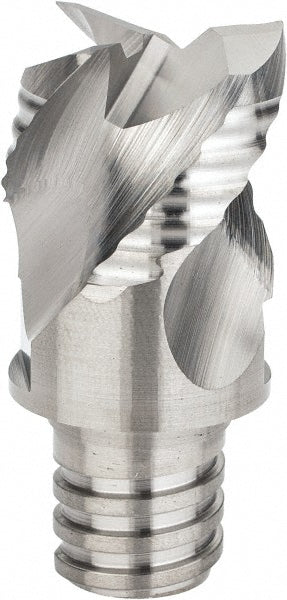

Carbide Insert, Grade IC08 - Iscar 5622749

MFR# 5622749Series MM ERA

$192.09List $246.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC08

Description

The Iscar 5622749 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerCommon
Coolant throughNo
Corner radius0.0080
Cutting width0.7500in
Extension from holder in1.0000
Functional length1.0040
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.750B47R008
Lead angle90
Length of cut in1/2in
Manufacturers catalog number5622749
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.5
Milling tip full descriptionMM ERA.750B47R008-3T12 08
Milling tip styleMM ERA
Milling tip typeRoughing
Number of flutes3
Overall length1.0040in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
