Iscar

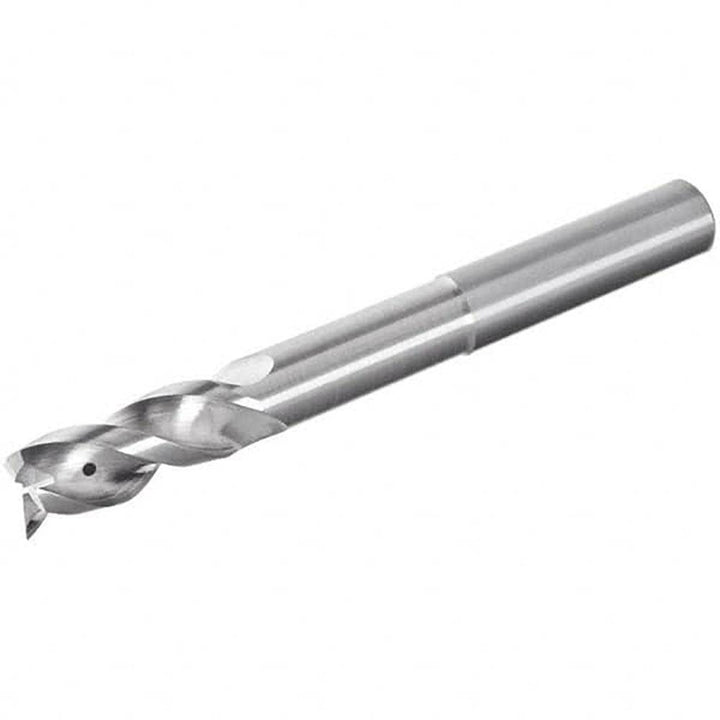

0.7874" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622831
MFR# 5622831Series ECA-H3-CF
$385.80List $494.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description
The Iscar 5622831 is a 0.7874 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. Series ECA-H3-CF.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0787
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut1.5748
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Material removal typeRoughing & Finishing
Mill diameter0.7874
Mill diameter tolerance-0.040000 to 0.073000 mm
Number of flutes3
Overall length (mm)110.00
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)60.00
Shank diameter (mm)20.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
