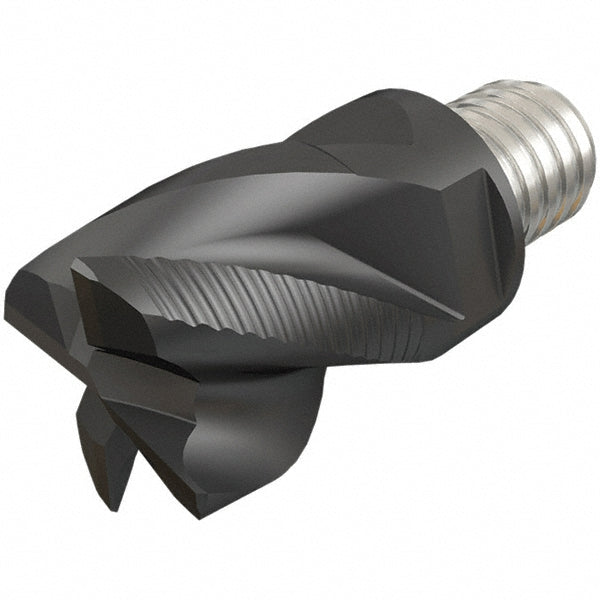

Carbide Insert, Grade IC908, TiAlN - Iscar 5622903

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5622903

MFR# 5622903Series MM EFS-CF

$367.85List $471.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5622903 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting width0.7500in
Extension from holder in1.0040
Functional length1.0040
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size.750E62
Lead angle90
Length of cut0.6300in
Manufacturers catalog number5622903
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.6300
Milling tip full descriptionMM EFS.750E62-4T12 CF
Milling tip styleMM EFS-CF
Milling tip typeRoughing
Number of flutes4
Overall length1.0040in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
