Iscar

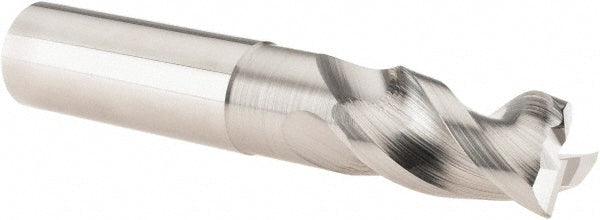

5/8" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622920
MFR# 5622920Series ECAI-H3-CF
$236.18List $297.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Iscar 5622920 is a 5/8 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 3-1/2 overall length. Series ECAI-H3-CF.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in1
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter toleranceh6
Number of flutes3
Overall length in3-1/2
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length1.8700
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
