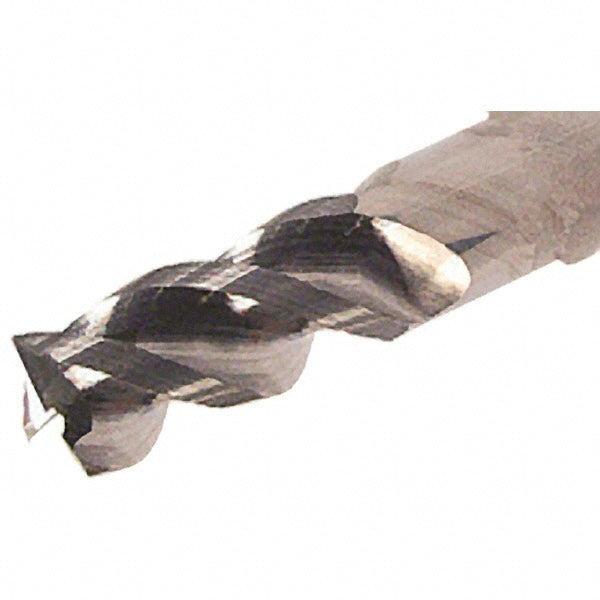

0.3120in" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622931

Iscar

0.3120in" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622931

MFR# 5622931Series ECAI-H3-CF

$67.86List $86.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Iscar 5622931 is a 0.3120in 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 1/2in length of cut, 2-1/2in overall length. Series ECAI-H3-CF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in1/2in
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Material removal typeRoughing & Finishing
Mill diameter0.3120in
Mill diameter toleranceh6
Number of flutes3
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length0.9000
Shank diameter in5/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
