Iscar

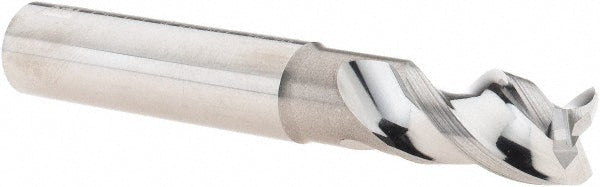

3/8in" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622932
MFR# 5622932Series ECAI-H3-CF
$95.02List $121.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Iscar 5622932 is a 3/8in 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 2-1/2in overall length. Series ECAI-H3-CF.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut1.1811in
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter toleranceh6
Number of flutes3
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/8
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
