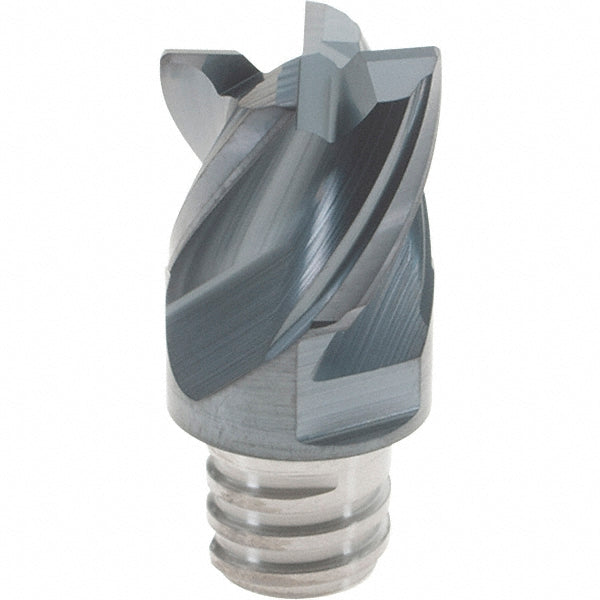

Carbide Insert, Grade IC908, TiAlN - Iscar 5623028

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5623028

MFR# 5623028Series MM EC-CF

$131.34List $168.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5623028 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0197
Cutting diameter0.4728
Cutting width0.4728in
Extension from holder (mm)16.50
Functional length0.6501
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size120E09R05
Lead angle90
Length of cut0.3546in
Manufacturers catalog number5623028
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3546
Milling tip full descriptionMM EC120E09R05CF-4T08
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length0.6501in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
