Carbide Insert, Grade IC908, TiAlN - Iscar 5623033

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5623033

MFR# 5623033Series MM EC-CF

$103.23List $132.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

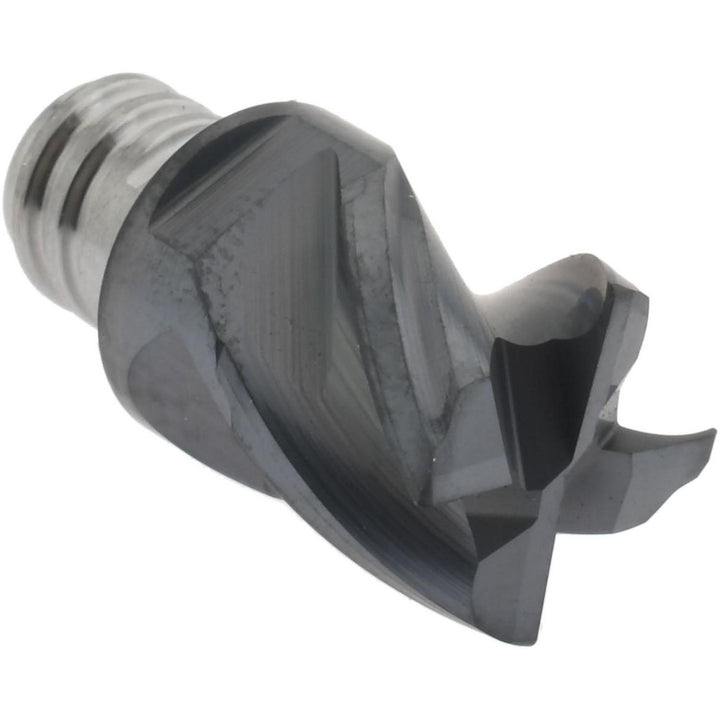

The Iscar 5623033 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0150
Cutting width0.3750in
Extension from holder in0.5190
Functional length0.5120
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size375E27R15
Lead angle90
Length of cut0.2990in
Manufacturers catalog number5623033
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2990
Milling tip full descriptionMM EC375E27R15CF-4T06
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length0.5120in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
