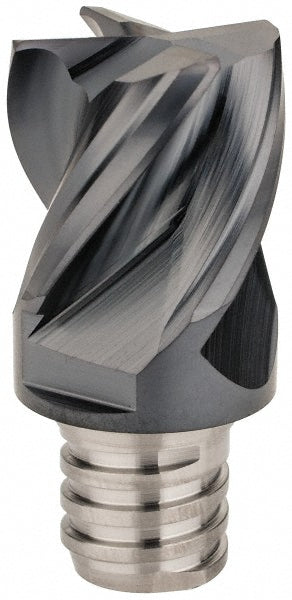

Carbide Insert, Grade IC908, TiAlN - Iscar 5623036

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5623036

MFR# 5623036Series MM EC-CF

$234.69List $301.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5623036 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0310
Cutting width0.7500in
Extension from holder in1.0040
Functional length1.0040
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size750E62R31
Lead angle90
Length of cut0.6290in
Manufacturers catalog number5623036
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.6290
Milling tip full descriptionMM EC750E62R31CF-4T12
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length1.0040in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
